FEATURES

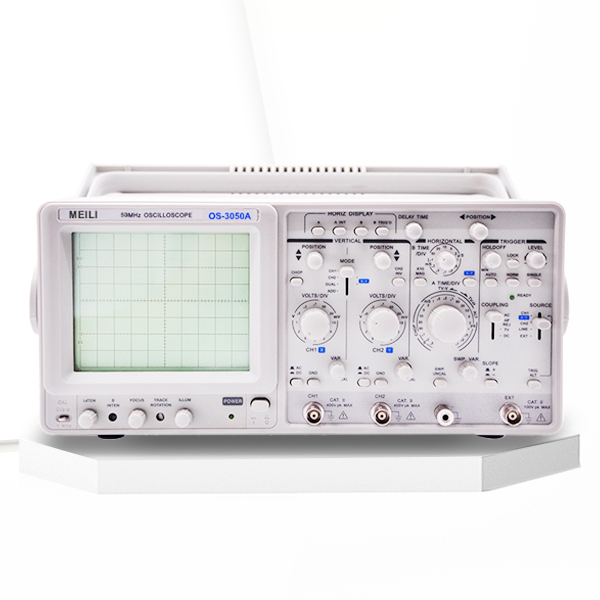

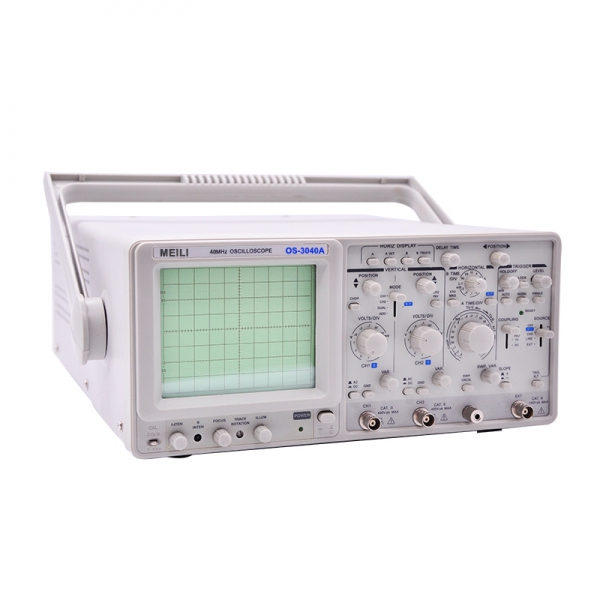

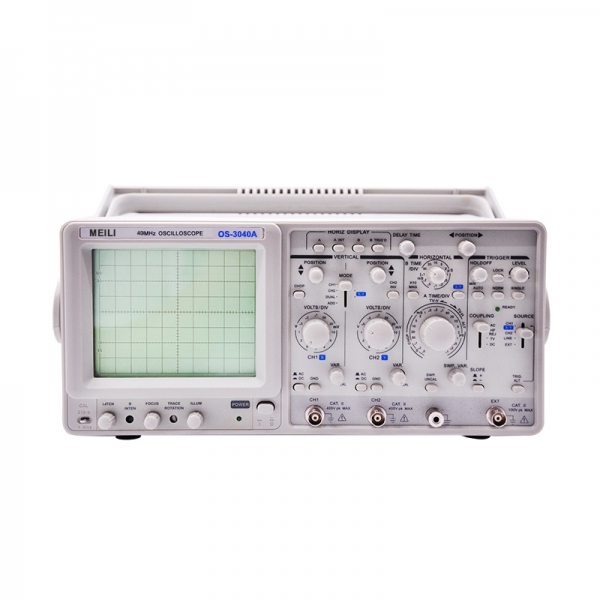

● MCH-OS-3020A/3040A/3050A
● 20M/40M/50M
● Dual channel/four trace, X-Y mode,imported coded switch provides good feeling, high reliability and long life, A/B Sweep.
● 1mV/div High sensitivity, low drift.
● Delayed sweep helps to closely examine small parts of main time base.
● Trigger level lock function establish the trigger point within the p-p signal swing and ensure rock-solid triggering despite wide variations in signal excursions.
● Dedicated video H and V sync separator provides stable video waveform.
● Variable holdoff for viewing long, complicated wavetrains,
● CH1 OUTPUT enables scopeʼs CH1 amplifiers to be used as a high-gain calibrated pre-amp.
● 6" display, imported high brightness CRT tube.
Spectrum Analyzer, Function Generator, Frequency Counter, Millivoltmeter, DC Power Supply and so on.
The Company was founded in 1995. After many years of development, it has become strong not only in size, but also in production and R & D capability.
The Company was founded in 1995. After many years of development, it has become strong not only in size, but also in production and R & D capability.
MCH specializes in manufacturing up to hundred models of measuring instruments, such as Oscilloscope
