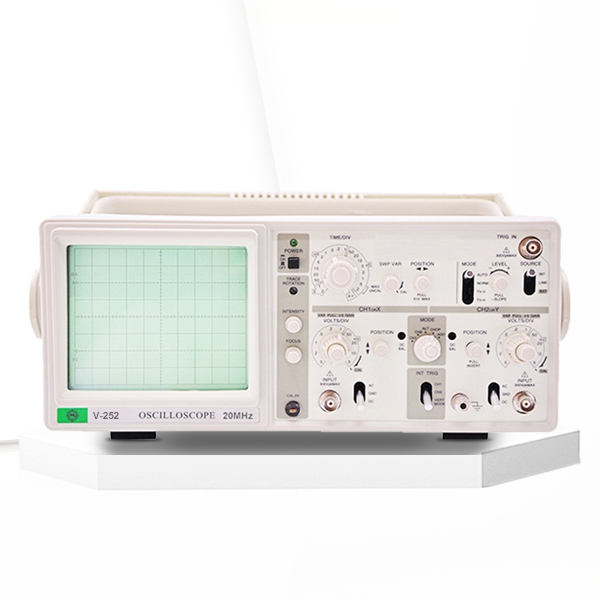

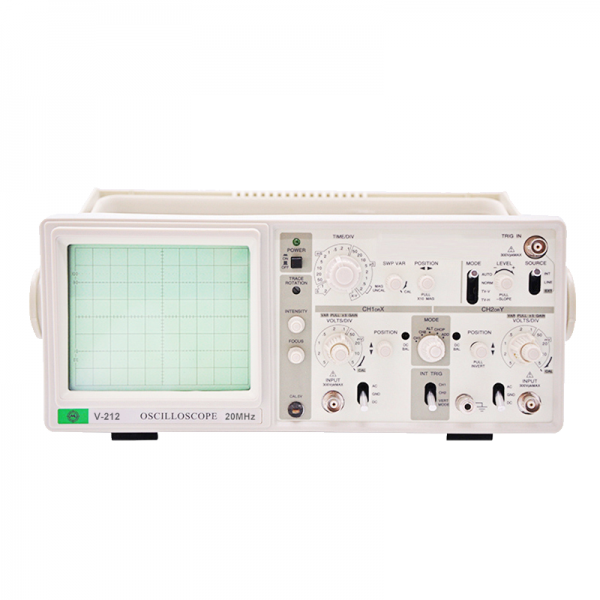

20M/30M Dual channels/dual traces Analog oscilloscope

FEATURES
● MCH-V-212/252/5030
● 3 specifications available
● DC-20MHz / DC-30MHz
● Dual channels/dual traces, X-Y mode
● 6" display, imported high brightness  oscilloscope  tube
● High sensitivity of triggering, up to 1mV/divison
● TV synchronous separation circuit to observe  stable TV signal
● Trigger mode:AUTO/NORM/TV-V/TV-H
● Vertical:CH1/CH2/ALT/CHOP/ADD
● X-x10/Y-x5
● Polarity inversion
● CH1 Sync output
● Power supply:AC 220V (110V optional)
