FC-3000 series-MCH Instruments CO.,Ltd.

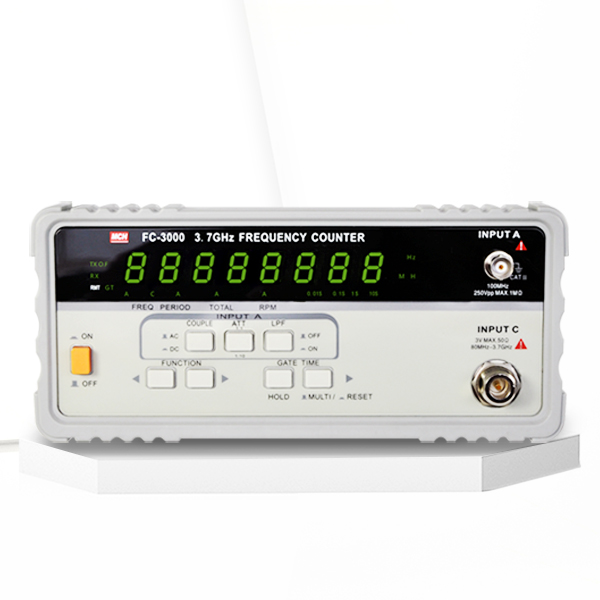

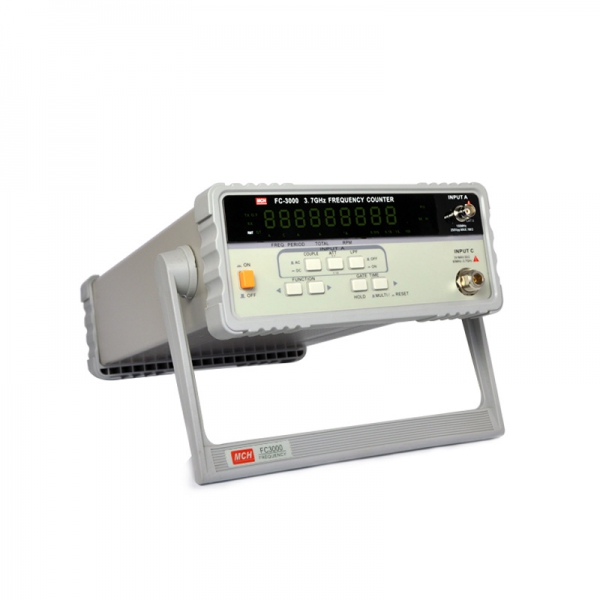

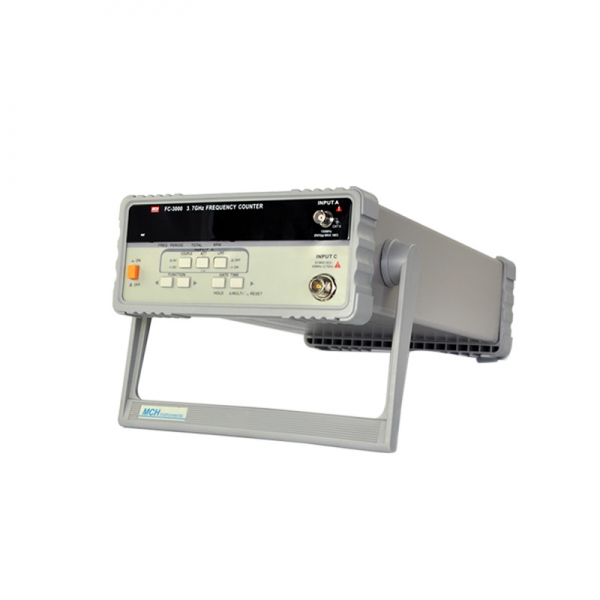

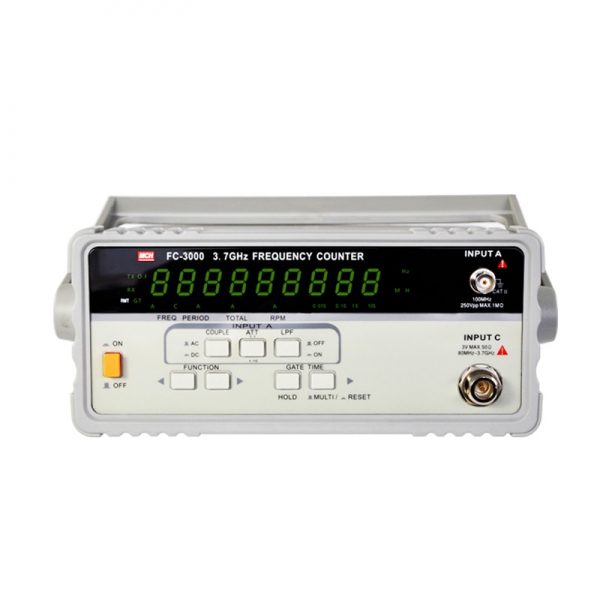

Digital high frequency frequency meter

FEATURES

● Frequency measuring range:
0.1Hz to 100MHz in A input,
80Mhz to 3.7GHz in C input.

● Period,total and RPM measurement for niput A.
● Data hold function

● 9 digit display with 0.01mHz resolution in 1Sec (by reference signal).

● Self check function executed to perform a automatic self diagnosis of various counter funter function.

● Low-pass filter installed for removing noise signal in low frequency measuring

● AC/DC coupling function
● 10:1 input attenuation

	+86 755 8328 1201
	service@china-mch.com
	www.china-mch.com
	Room,28P,Block,B,Modern Window,Huaqiang Rd North,Shenzhen

Digital high frequency frequency meter
